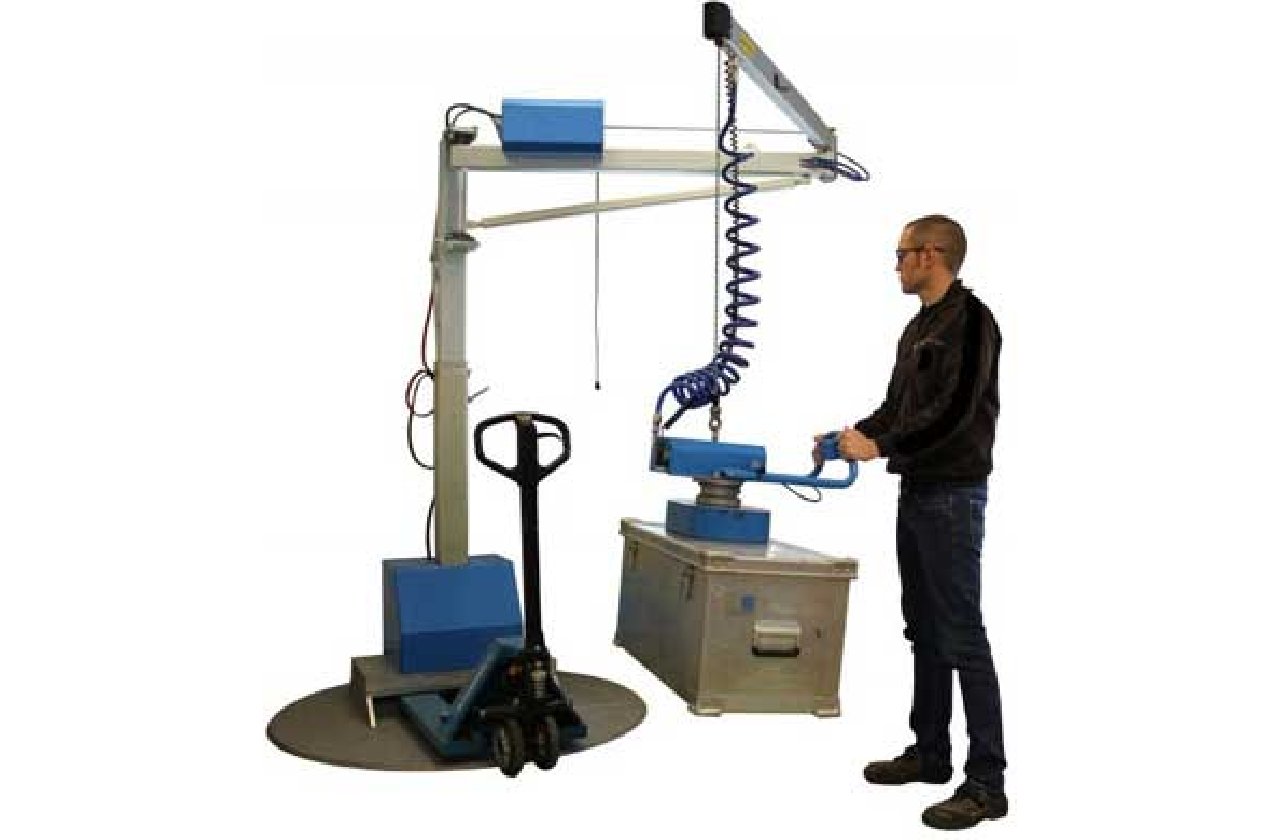

MOBI Crane Series PV
These portable pneumatic Jib Cranes provide quiet operation and adjustable lift/lowering speed.
The PV Series is designed for indoor use and can be combined with a variety of grippers. The system contains onboard batteries, battery charger, and can be operated while connected to 110V/AC.
The “PV” Series is designed to provide safe and fast vacuum suction to attach to products with a semi-porous surface, such as cartons or paper boxes and bags. The MOBI-Crane utilizes an external air supply of at least 87 psi to power the built-in Mach 2+ supersonic vacuum ejector. The operator can switch between different vacuum grippers, which allows for quick adaptability (change over) between different products.
How does a pneumatic crane work
By increasing the internal air pressure and moving the cylinder along the piston’s axis, an external motor or pump moves the piston inside the cylinder. The lift components are extended to raise or lower the object as a result of the cylinder’s motion along the axis, which also generates a linear force.
Spans and capacities
- 6′-8″ 170lbs.
- 8′-2″ 150lbs.
- 10′-0″ 125lbs.
- 11′-6″ 85lbs.
- 13′-1″ 50lbs.
Gripper End Effector to Build Water Pumps
This company assembles CAT water pumps for CAT themselves.
Vacuum Tube Lifter for Lifting Wood and MDF Sheets
This carpentry company needed a way to quickly, effectively and safely move sheets of wood throughout their workshop, without causing any damage to the wood itself.
Pneumatic Device for Transfer Cases
This pneumatic lifting device has a power clamp and power lift, in addition to having the ability to manually rotate 180 degrees.
