MOBI Crane Series M
MOBI-Crane Series M is a portable jib crane with an articulating arm designed to aid in the manual lifting of items up to 185 lbs. The crane’s mobility is accomplished by either a standard pallet jack or forklift. The M Series (Mechanical) is designed for indoor use and can be combined with a variety of grippers.
MOBI-Crane Series M is a portable jib crane with an articulating arm designed to aid in the manual lifting of items up to 185 lbs. The crane’s mobility is accomplished by either a standard pallet jack or forklift.
The M Series is designed for indoor use and can be combined with a variety of grippers. The system contains on-board batteries, battery charger and can be operated while connected to 110V/AC. These Portable Jib Cranes provide quiet operation and adjustable lift and lowering speeds.
What is a mechanical crane
A mechanical crane is a mechanical lifting tool that can lift and lower things as well as move them horizontally. It is furnished with a winder, wire ropes, and sheaves. It makes use of one or more simple devices to generate mechanical advantage and move loads faster than a person could on their own.
Spans and Capacities
- 6′-8″ 185lbs.
- 8′-2″ 165lbs.
- 10′-0″ 140lbs.
- 11′-6″ 100lbs.
- 3′-1″ 65lbs.
Gripper End Effector to Build Water Pumps
This company assembles CAT water pumps for CAT themselves.
Vacuum Tube Lifter for Lifting Wood and MDF Sheets
This carpentry company needed a way to quickly, effectively and safely move sheets of wood throughout their workshop, without causing any damage to the wood itself.
Manual Lifting Attachment
One of our customers needed a solution to lift 11 camshafts. R&D Ergo Ltd.
A Guide to Workplace Musculoskeletal Disorders
Your Perfect Solution Awaits!
Request a Quote
Related Products
Ceiling Mounted Articulating Jib Cranes
Ceiling mounted articulating jib cranes can be stationary mounted or platform supported, which allows for usage outside the normal coverage of a bridge crane or the jib to swing under obstructions.
400 Series Bridge-Mounted and Ceiling-Mounted Articulating Jib Crane
The articulating jib crane can lift loads around corners and columns, reach into or under machinery and containers, and service virtually any point between the pivot anchor and the far reach of the boom.

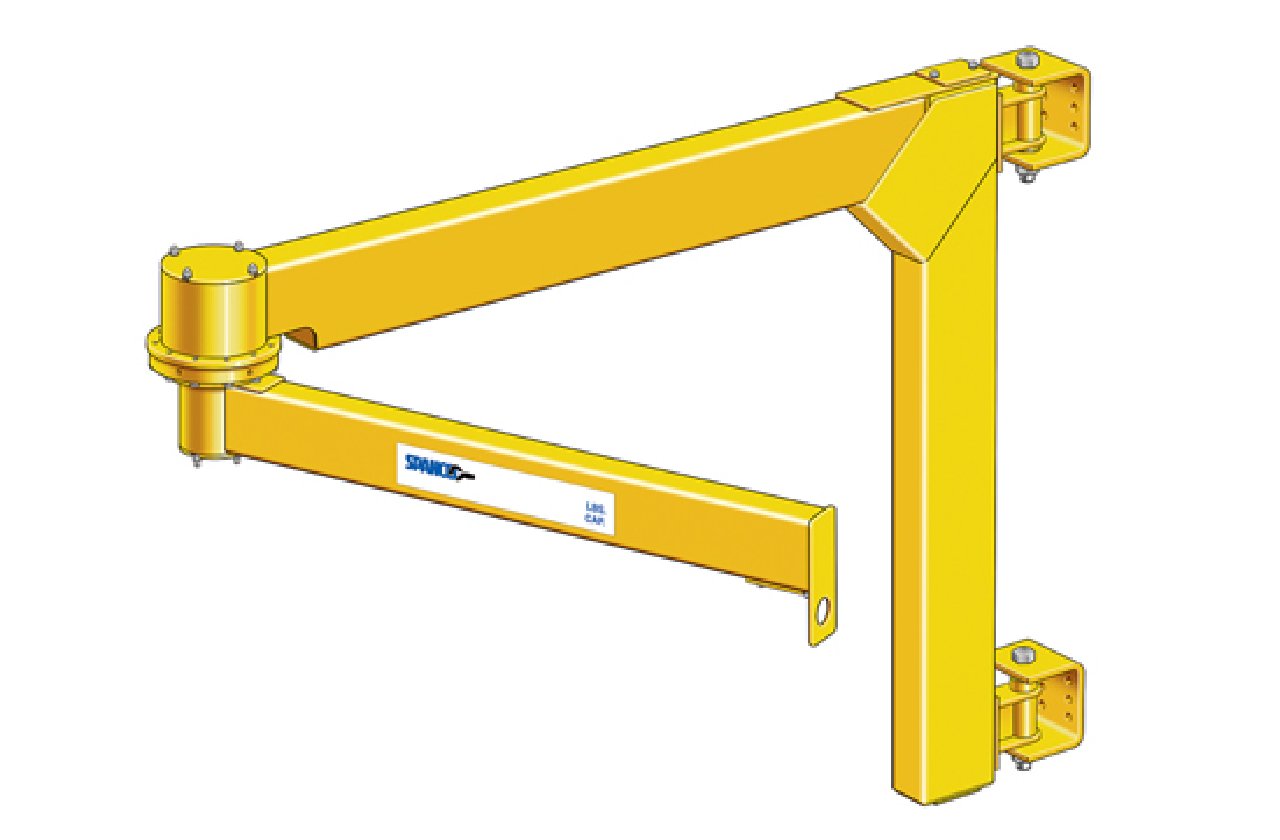

401 Series Wall-Mounted Articulating Jib Crane
